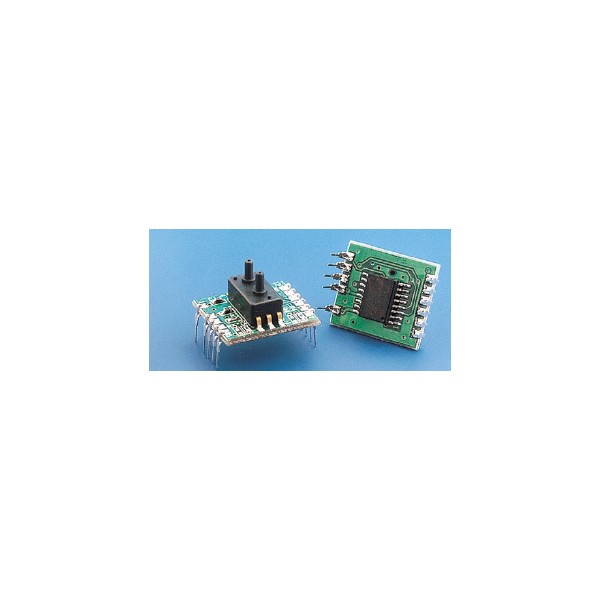

PSM-001KPDW-F

Differential bipolar pressure sensor for air and non-corrosive gases with piezoresistive technology: 'silicon on glass'

Range: -1 +1 kPa

DIP sensor mounted on board with ASIC integrated , DIP mounting board 12pin

Size 23x20mm card, port length 5mm, 5Vdc power supply with amplifier circuit and integrated temperature compensation

output voltage 0.5-4.5Vdc.
