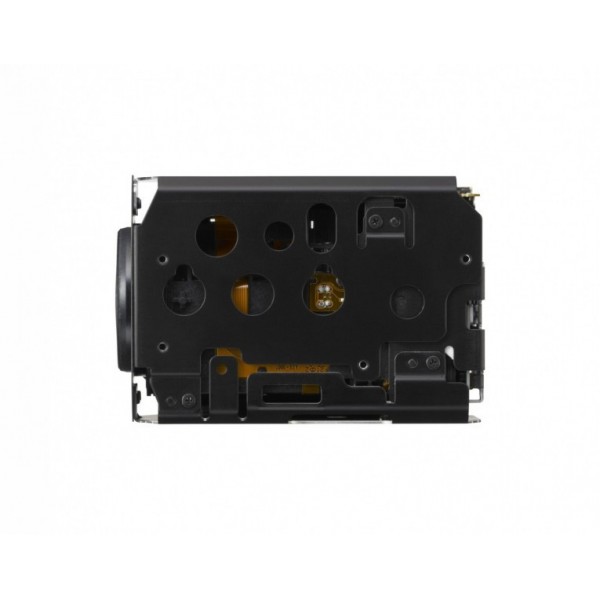

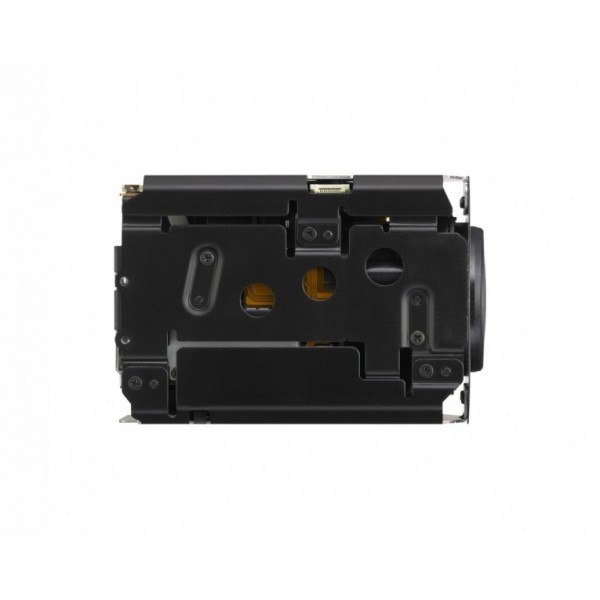

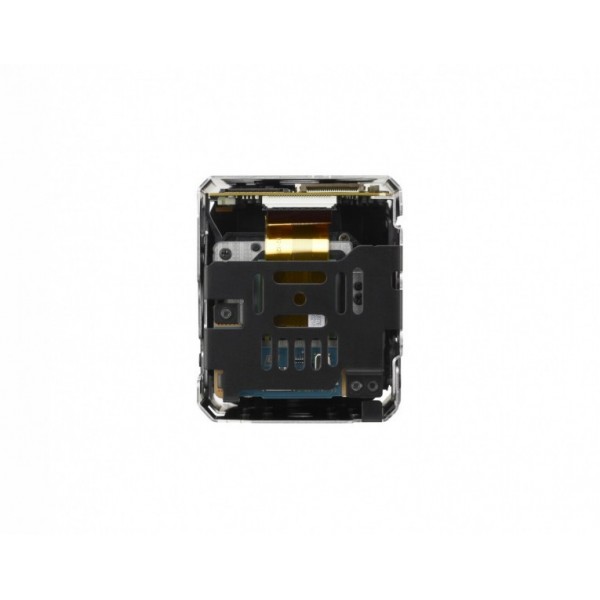

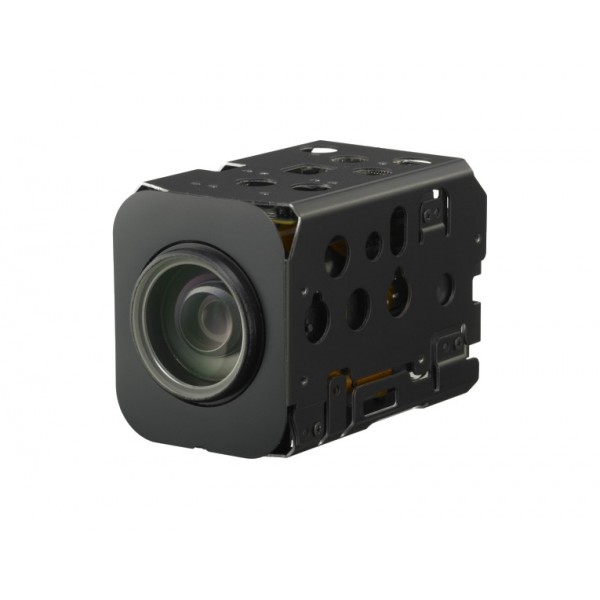

FCB-EH3410

The FCB-EH3410 camera incorporates a 1/4-type Exmor CMOS image sensor with HD (1280 x 720) resolution. Features include:

• Excellent high-definition (HD) picture quality
• The Exmor CMOS sensor realizes high image quality and high sensitivity
• Powerful zoom capability
• Bright, fast, and robust 28x zoom lens
  The FCB-EH3410 incorporates a new 28x bright zoom lens with f=1.35. This lens has a fast-zooming capability (approx. 2.6 seconds from tele end to wide end) and high durability.
• Various output modes

-          HD (High Definition)
Analog: Component (Y/Pb/Pr)
Digital: Y/Cb/Cr 4:2:2 via LVDS (Y: 8-bit, C: 8-bit, V-sync, H-sync, Field, and Clock)

-          SD (Standard Definition)
VBS

• Simple connection - one cable, one connector

-          Covering video, VISCA communication, and power supply with a single cable

-          Supports both 30-pin micro coaxial (digital and analog output) and 24-pin FFC (analog output only) interfaces

• Image Stabilization*2
  The FCB-EH3410 is equipped with an image-stabilization function which minimizes the appearance of shaky images caused by low-frequency vibration. This function is useful for outdoor surveillance and traffic monitoring applications.
• StableZoom™
  StableZoom is a function for performing correction using the imagestabilization function in accordance with the zoom ratio, and smoothly zooming up to approximately ×33 using a combination of the optical zoom and digital zoom. In StableZoom mode, this function starts naturally without bringing an abrupt change to the horizontal angle of view.
• Video mode changes on the fly
  Without any power cycle, this function makes it possible to change the video mode, for example, from 1080p/29.97 to 720p/59.94 mode.
• Security-oriented functions include:
  Wide-D technology (On/Off/Auto/Ratio fix)
   Day/Night function (On/Off/Auto/Threshold enabled)
  Digital noise reduction (up to five levels)
  Spherical Privacy Zone Masking (24 zones with various PTZ controls)
  Motion detection alarm (four zones with several triggering and threshold modes)
• Various modes for White Balance (Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp Fix/Auto, One-push, Manual)
• Picture effects (E-Flip, Nega Art, Black & White, Mirror Image, Color Enhancement)
• Picture freeze
• Temperature readout
• Slow AE response (approx. five minutes)
• Title display (20 characters per line, max. 11 lines)
• Camera mode display (English)
• Electronic shutter/slow shutter
• Spot AE
• High Resolution mode
• IR Focus Correction function
• Four presets for gamma control
• Four levels of chrominance suppression

*2   When image stabilization is activated, residual movement may appear at the top and bottom of the image.


ATTENTION: DISCONTINUED PRODUCT
