Home>SENSORS CATALOG>Sony Camera Block >Interface Boards and accessories>TV80 0033

TV80 0033

TV80 0033

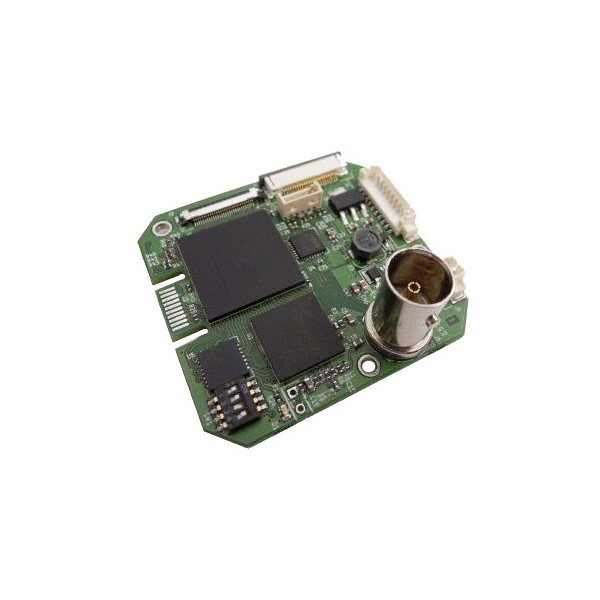

Interface board with 3G HD-SDI output for Sony Camera Block.

More details...

Availability : Lead time: 2 weeks

TV800033

604,00 € tax incl.

  • Ask for more quantity order

    • Product Request:

    TV80 0033

    TV80 0033

    Interface board with 3G HD-SDI output for Sony Camera Block.

    do not include special characters

    * Required fields

    Cancel

    • Supply Voltage 6 to 12 VDC 6 W (camera included) 5V for SE600
    • Connector BNC (SMB MCX OPTIONS)
    • Working Temperature 0°C a 60°C
    • Dimensions (mm) 48 (H) x 45 (L) x 20 (P)
    • Analog Video Output Y Pb Pr 75 ohms 1V
    • Output 3G HDSDI SMPTE 424 M HDSDI 292 M
    • Standard Output Video Configuration Micro Interrupters
    • Setting EMC FCC part 15 PCB

    Interface board with 3G HD-SDI output for Sony Camera Block.

    Two audio inputs with microphone or line level are available.

    Depending on the camera model, component and SD composite analog video outputs are available.

    Camera video standard is coded with switches and a serial link (RS232 or TTL level) which allows the control of the camera and audio setting.
