Home>SENSORS CATALOG> Pressure Sensors>SMD Mounting>AL42DB-010KD-2

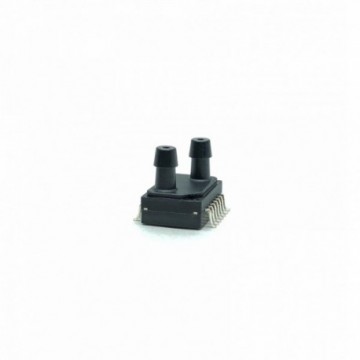

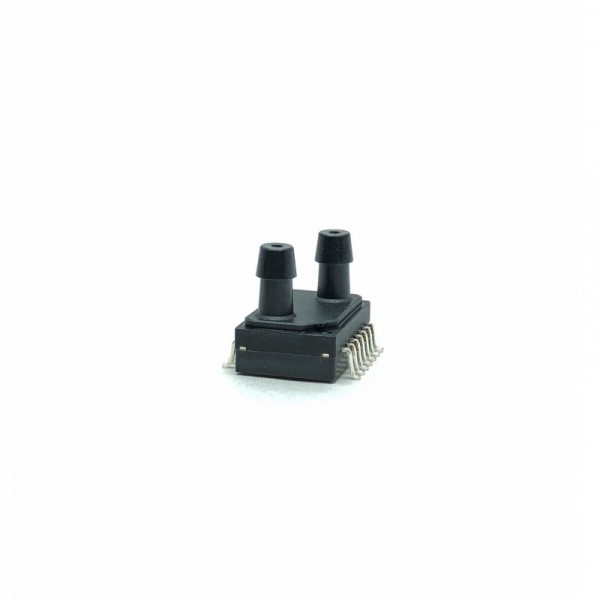

AL42DB-010KD-2

AL42DB-010KD-2
Pressure Sensor SMD mounting type, ASIC integrated with temperature compensation and digital output

More details...

Availability : This product is no longer in stock

AL42DB-010KD-2

46,97 € tax incl.

  • Ask for more quantity order

    • Product Request:

    AL42DB-010KD-2

    AL42DB-010KD-2

    Pressure Sensor SMD mounting type, ASIC integrated with temperature compensation and digital output

    do not include special characters

    * Required fields

    Cancel


    Notify me when available
    • Supply Voltage 3.0 Vdc
    • Measuring Range 10 kPa
    • Pressure port Vertical
    • Pressure Type Differential
    • Accuracy +/- 1.5% FS
    • Pressure port lenght 5.15 mm
    • Temperature Compensation -5 / +65°C
    • Orientamento pin Opposto
    Fujikura piezoresistive pressure sensor SMD mounting type.

    The sensibile element generates the raw signal which is amplified, temperature compensated, calibrated and provided to the user as digital output by the its integrated circuit.
    The digital output which carry the information is broadcasted by SPI or I2C interface protocol
